E Coating Line: Enhanced Corrosion Resistance for Metal Surfaces in Automotive Industry

The Science and Process Behind E Coating Lines

E-coating Process Steps From Pretreatment to Curing

The e-coating line starts with thorough surface prep work, then moves on to electrodeposition where electric currents actually pull paint particles onto metal surfaces. Most automotive parts go through about seven different stages first: they get degreased, rinsed multiple times, and treated with phosphate solutions to clean off anything that might interfere with how well the coating sticks. When parts are dipped into the e-coat tank, around 50 to 300 volts of direct current makes sure the coating spreads evenly. The thickness control is pretty impressive too, staying within plus or minus one micrometer even on complicated shapes. After dipping, there's another rinse to wash away extra material before everything gets baked at temperatures between 160 and 200 degrees Celsius. This baking process locks the polymer together, creating a strong protective layer against rust and corrosion that lasts much longer than traditional methods.

Surface Preparation for E-coating: Critical to Adhesion and Uniformity

Even tiny contaminants measuring just 0.1 microns can ruin the whole coating process. That's why car makers rely on zinc phosphate conversion coatings. These treatments create those special microcrystalline surfaces that stick much better to metal. Tests show this method boosts bond strength around 40% over regular steel that hasn't been treated at all. Before applying any coatings though, shops use alkaline cleaning solutions with pH levels between 8 and 12. These baths clean away oils but don't hurt the base material underneath. When technicians check contact angles after cleaning and find them under 10 degrees, they know the surface is properly prepared for whatever coating comes next. Good wetting means the final product will last longer too.

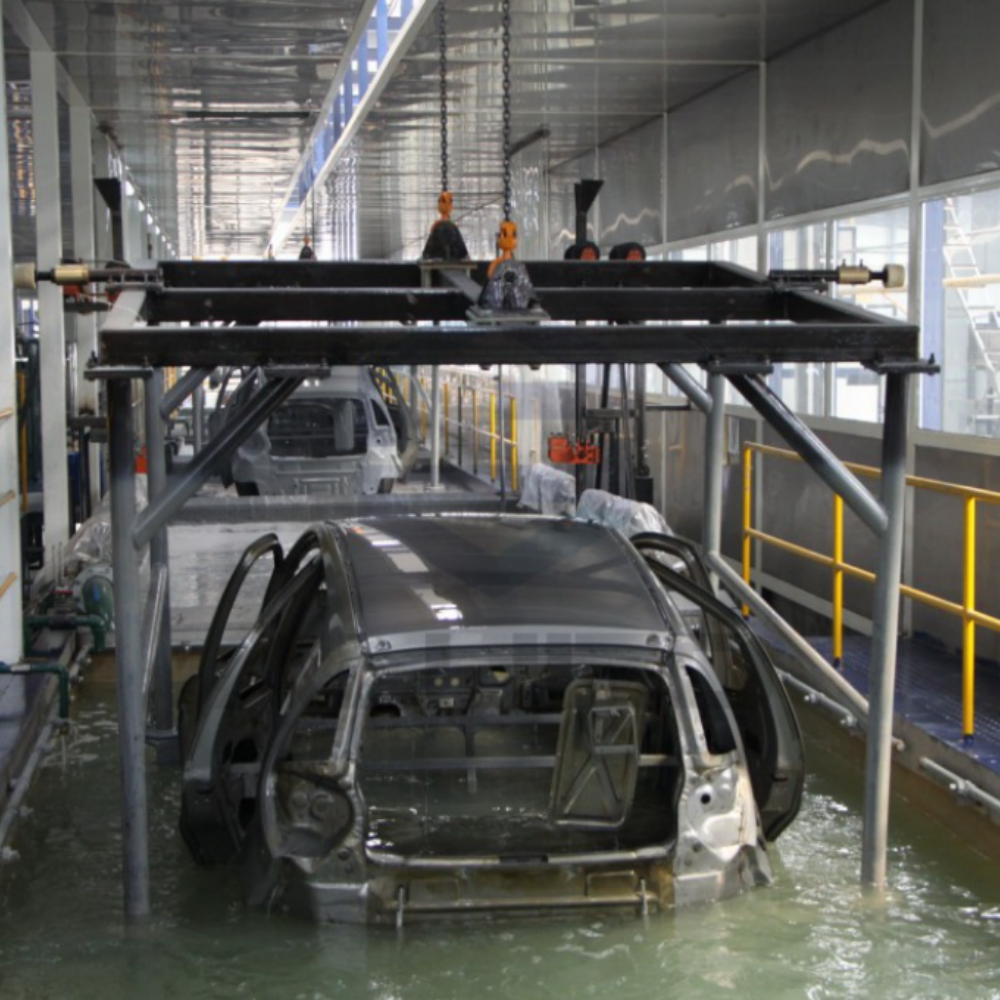

E-coat Bath Immersion and Electrodeposition: Achieving 360-Degree Coverage

The process of electrodeposition works based on those old Faraday principles we all learned in school, giving full coverage even where paint just won't stick naturally like inside door hinges or along complex internal channels. When the paint particles move towards the metal part being coated, they do so pretty quickly too around 15 micrometers per minute. The conductivity of the bath needs to stay within certain limits, typically somewhere between 1,000 and 1,500 microsiemens per centimeter for best results. What makes this method really effective is how the system constantly adjusts voltage depending on what shape the part actually is. This means flat surfaces get their coating just right while those complicated engine components with all sorts of angles still end up properly protected without those annoying thin spots that happen when electrical fields aren't distributed evenly across the surface.

Uniform Coverage Even on Complex Shapes: Engineering Behind Consistent Film Thickness

Simulation models now can actually predict how coatings will spread on components with really tight corners, down to 2 mm radius areas. The robotic racking system places each part at specific 22.5 degree angles when they go into the bath, which helps prevent those pesky air bubbles from getting trapped inside complex shapes and channels. Once everything cures, we run these special eddy current sensors over the surface. They check the coating thickness and show variations of no more than 5% even on complicated curves like car wheel arches. That's pretty impressive compared to traditional spray methods where consistency drops off significantly. Most shops report this approach delivers three times better uniformity than what they used to get with conventional spraying techniques.

Superior Corrosion Resistance of E Coating in Automotive Applications

Corrosion Resistance of Metal Surfaces: How E-Coating Outperforms Alternatives

E-coating provides roughly two to three times better corrosion resistance compared to regular spray coatings because it creates an even coat without defects through electrodeposition. Traditional methods tend to leave those hard-to-reach areas exposed, making about 12-15% of surfaces at risk for rust problems. E-coating covers around 98% of complicated components such as car door hinges and various brackets though. The reason behind this improved protection lies in how the process works at a molecular level with ions bonding to the metal surface, basically wrapping everything up tightly so nothing gets through.

The Role of E-Coating in Rust Prevention: Data From Accelerated Salt Spray Testing

According to ASTM B117 salt spray tests, automotive panels with e-coating can hold off red rust for about 1,500 hours, which is roughly 83% better than what we see with powder coating options. Research published in 2023 looked at how different coatings handle corrosion, and they discovered something interesting about e-coating. When parts are subjected to those road salts used for de-icing, the corrosion rate drops dramatically from around 0.5 mm per year down to under 0.03 mm annually. There are several reasons why this kind of protection works so well, though I'll get into those specifics shortly.

• Coating thickness consistency of 5–8 µ (±0.3 µ variation)
• Seamless protection on sharp edges and weld seams
• Complete Faraday cage coverage during immersion

Recent advances in epoxy resin formulations have improved resistance to chloride ion penetration by 40% compared to earlier systems.

Long-Term Performance of E-Coated Steel Components Under Harsh Environmental Conditions

Field data from coastal vehicle fleets show e-coated suspension components maintain structural integrity after:

• 8+ years in high-humidity environments
• 500 thermal cycles (-40°C to 85°C)
• UV exposure equivalent to 15 years of sunlight

Unlike anodized or galvanized coatings that develop stress-induced micro-cracks, e-coatings flex with the substrate, blocking electrolyte pathways and preserving long-term protection.

Case Study: Extended Vehicle Lifespan Due to Enhanced Corrosion Resistance of E-Coating

A leading European automaker reported 62% fewer warranty claims for body corrosion after switching to e-coated underbody panels. Their 2023 teardown analysis of 10-year-old vehicles revealed significant improvements:

This improvement extended average vehicle service life by 3.8 years in snowbelt regions, demonstrating e-coating’s impact on longevity and reliability.

Controversy Analysis: Limitations of E-Coating in Extreme Chemical Exposure Environments

E-coating works great for most car applications, but there are limits when it comes to harsh chemicals. The epoxy stuff breaks down pretty fast when exposed to really strong stuff like concentrated sulfuric acid below pH 2 or those super basic caustic soda solutions above pH 12. And let's not forget about heat either—it starts to fail at temperatures over 200 degrees Celsius. Some research from last year found that after just six months sitting in biodiesel fuel mixtures, the protective layer lost about three quarters of its strength. That's definitely worrying for folks working on alternative fuel cars. On the bright side though, manufacturers are starting to experiment with new combinations where they pair regular e-coat with ceramic coatings on top. These mixed approaches seem promising for solving many of these problems and opening up new possibilities for where this technology can be used.

Key Applications of E Coating Lines on Automotive Metal Components

E-coating applications in the automotive industry: Chassis, frames, and underbody parts

E coating lines offer really good protection against rust for parts like chassis rails, frame cross members, and those underbody panels that get hit by road grime and salt all winter long. What makes this process special is how it gets into every nook and cranny of the welded joints and hidden areas inside the body structure before painting. Traditional spray techniques just can't reach these spots properly, creating what we call shadow zones where corrosion starts. E coating actually works its way deep into suspension system components and around bolt threads too. This means manufacturers aren't just applying paint but stopping rust right at the point where it usually begins forming first.

Adhesion and uniformity of e-coating on different metal substrates

The electrochemical bonding process of e-coating gives it better stickiness compared to coatings applied through mechanical means. When applied to steel surfaces, we typically see film thicknesses ranging around 8 to 12 micrometers even on tricky areas like stamped edges and curved parts. Aluminum presents different challenges because of its conductivity properties, so manufacturers often use modified zinc phosphate treatments to get that same strong bond. What makes e-coating really valuable is how well it works across different materials. This becomes especially important when dealing with mixed material assemblies these days, particularly those combining steel and aluminum components which are becoming standard in many electric vehicle designs due to weight savings requirements.

Why is e-coating better? Advantages over traditional coating methods

E coating lines offer three key advantages over conventional techniques:

1. 360° coverage: Electrodeposition reaches recessed areas inaccessible to spray nozzles
2. Reduced waste: Closed-loop systems recycle over 95% of coating material, far exceeding the 40–50% efficiency of manual spraying
3. Production efficiency: Automated lines process parts 2–3 times faster than powder coating systems

These benefits have driven automotive manufacturers to shift 60% of structural component coating operations to e-coating since 2015, particularly for high-volume electric vehicle production requiring precision and repeatability.

Efficiency, Automation, and Sustainability of E Coating Lines in Mass Production

Integration of e-coating line into automated assembly systems

Modern e-coating lines integrate seamlessly with robotic handling and AI-driven controls, maintaining precise voltage (120–250V) and bath temperatures (25–32°C) critical for uniform film formation. According to a 2023 study, automated systems achieve 98.6% first-pass yield versus 82% in manual setups, significantly reducing rework and operational costs.

Trend analysis: Adoption of smart monitoring in e-coat bath management

Over 67% of automotive producers now deploy IoT-enabled sensors to monitor bath conductivity and pH in real time. These systems forecast replenishment needs with 94% accuracy, cutting annual material waste by 12%. Leading smart coating analytics platforms enable predictive maintenance, reducing unplanned downtime by 41% in high-volume environments.

Sustainability and waste reduction in modern e-coating lines

Advanced ultrafiltration loops recover 92% of overspray material, outperforming conventional processes that reclaim only 60–70%. Water-based formulations dominate 78% of automotive applications, lowering VOC emissions by 340 tons per year per production line (Sustainable Coatings Initiative, 2023). Closed-loop rinsing further reduces water consumption by 65% compared to traditional dip tanks.

E-coating vs. other coating methods: Performance in high-volume production

E-coating excels in mass production with 18% faster curing and tighter thickness control (±0.2 µm). A 2024 automotive study found e-coated chassis components had 50% fewer corrosion-related warranty claims than powder-coated counterparts after five years.

The Evolution and Future of E Coating Technology in the Automotive Sector

The evolution of e-coating applications in the automotive industry

E coating line technology has evolved from a basic anti-corrosion treatment to a critical, multi-functional system in modern manufacturing. First adopted in the 1970s for underbody protection, today’s electrophoretic coatings serve as foundational layers for electric vehicle battery housings, autonomous sensor enclosures, and lightweight aluminum structures.

The numbers tell an interesting story these days about vehicle manufacturing. Around 92 percent of all new cars worldwide now rely on e-coating for protection against rust and corrosion. These automated production lines can apply incredibly thin protective layers just 18 microns thick, yet still manage to cover even the most complicated parts with nearly perfect results at around 99.6% effectiveness. Manufacturers have been making some smart improvements too. Real time monitoring of pH levels combined with internet connected systems for managing chemical baths has made a big difference. Viscosity control is better than ever, and companies report cutting down on wasted materials by about 22% when compared to what was happening back in 2015. Pretty impressive progress for something so fundamental to car manufacturing.

This evolution aligns with three major industry trends:

• Electrification: E-coated battery trays withstand over 1,500 hours in salt spray tests (ASTM B117), shielding EVs from corrosive road agents
• Autonomy: Uniform dielectric properties ensure radar and LiDAR sensor housings do not interfere with signal transmission
• Sustainability: Closed-loop systems recover up to 98% of coating slurry, supporting zero-waste manufacturing goals

Progress has been made, but switching to zinc free pretreatment methods for parts with lots of aluminum still creates problems with how well coatings stick. Some factories report about 15 percent more rejected products when working with mixed material builds. Researchers are looking at combining epoxy and urethane resins to fix this problem, which could help maintain electrocoat's position as the go to method for preventing rust in cars. The automotive industry needs something that works across different materials and production scales, and right now e coating remains pretty much the standard despite these recent hurdles.

FAQ

What is the main advantage of e-coating over traditional coatings?

E-coating offers superior corrosion resistance and provides complete coverage even in hard-to-reach areas, making it more effective than traditional spray coatings.

How does e-coating improve the long-term performance of automotive components?

E-coating provides better adhesion and uniformity across different metal substrates, ensuring long-term protection against rust and corrosion even under harsh conditions.

Are there any limitations to using e-coating in automotive applications?

Yes, e-coating can be less effective in environments with extreme chemical exposure and high temperatures. However, combining e-coat with additional coatings like ceramics can enhance performance in such conditions.
